Refrigerated Truck

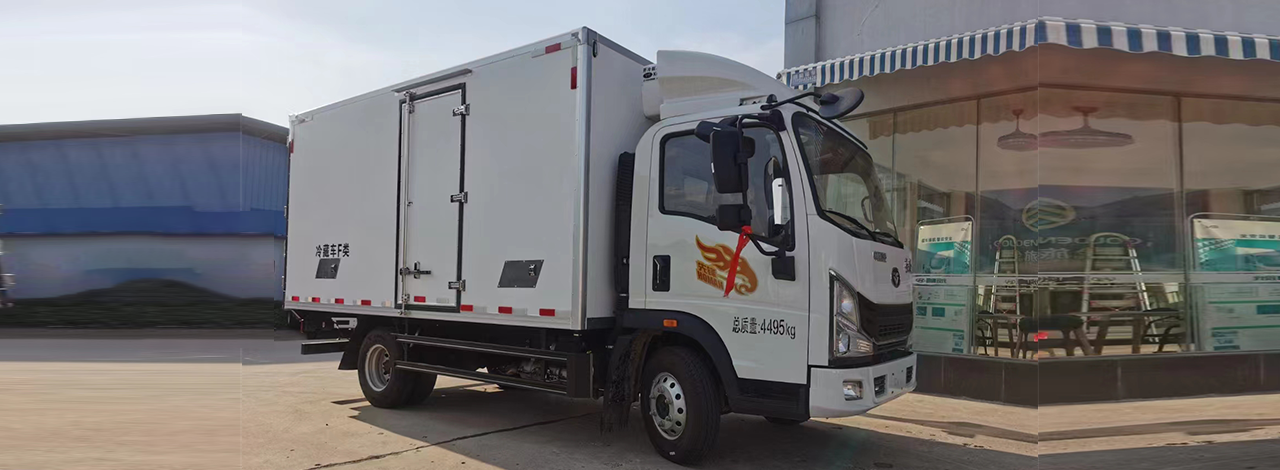

The Haoman light truck refrigerated vehicle is equipped with Weichai power WP2.5NQ170E62 engine, matched with Fast 8-speed transmission, providing strong power and a powerful start; high-strength steel frame with a large rear axle, excellent load-bearing capacity; it uses a high-end braking system, which has been reliably tested multiple times, offering superior braking performance and safer driving. It is suitable for inter-city cold chain transportation, such as fruits, vegetables, aquatic products, frozen meat, etc.
Technical Parameters
Engine | Model | WP2.5NQ170E62 |
Net Power (KW) / Speed (r/min) | 121/2900 | |
Maximum Torque (Nm) / Speed (r/min) | 500/1400-1800 |
Transmission | 8J50TA |
Clutch (mm) | Φ325 |
Rear Axle Model | 1061J(5T) |
Rear Axle Ratio | 4.875 |
Fuel Tank (L) | 150 |
Frame Cross-section (mm) | 180 |
Suspension (Front and Rear Springs) | Front and Rear Multi-Leaf Springs (11/9+7) |
Tires | 7.00R16-8PR |
Vehicle Configuration
Overall Vehicle Parameters | |
Engine Model | WP2.5NQ170E62 |
Chassis Dimensions (mm) | 5998 |
Wheelbase (mm) | 3280 |
Front Overhang Rear Overhang (mm) | 1175/1543 |
Maximum Total Mass (Kg) | 4495 |
Seated Passenger Capacity | 2-3 |
