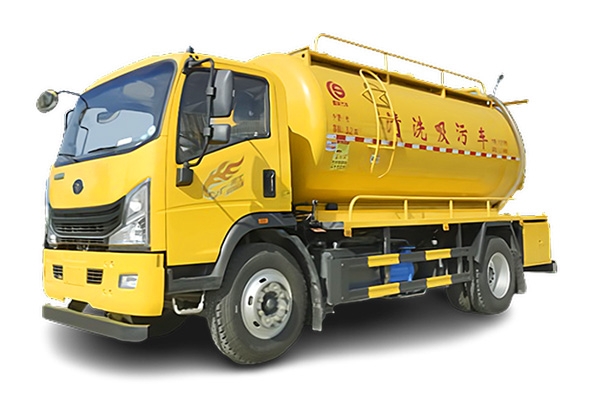

Vacuum Truck

Compatible layout, meeting the modification needs of various conversion factories. The combination of Weichai engine and Fast transmission provides strong power and efficient fuel economy. The high-strength frame with a large rear axle offers strong load-bearing capacity.

Technical Parameters

Engine Model WP3NQ160E61 WP4.1NQ190E61 WP4.6NQ220E62
Net Power (KW) / Speed (r/min) 118/2900 140/2600 140/2300
Maximum Torque (Nm) / Speed (r/min) 480/1400-2300 680/1300-1900 850/1200-1800
Transmission 8JS65E 8JS85E-C 8JS85E
Clutch (mm) Φ350 Φ395 Φ395
Rear Axle Model 1080（7.2T） 153AS（9T） 153AS（9T）
Rear Axle Ratio 5.833 5.571 5.571
Fuel Tank (L) 120 150 150
Frame Cross-section (mm) 216 250 250
Suspension (Front and Rear Springs) 11/9+7 9/11+8 9/11+8
Tires 8.25R16 8.25R20,9.00R20 10.00R20

Vehicle Configuration

Overall Vehicle Parameters
Engine Model WP3NQ160E61 WP4.1NQ190E61 WP4.6NQ220E62
Chassis Dimensions (mm) 6690x2180x2390 6915x2180x2390 7245x2180x2390
Wheelbase (mm) 3650 3900 4200
Front Overhang Rear Overhang (mm) 1175/1865 1280/1735 1280/1765
Maximum Total Mass (Kg) 11200 14060,16000 18000
Seated Passenger Capacity 2,3 2,3 2,3
#
