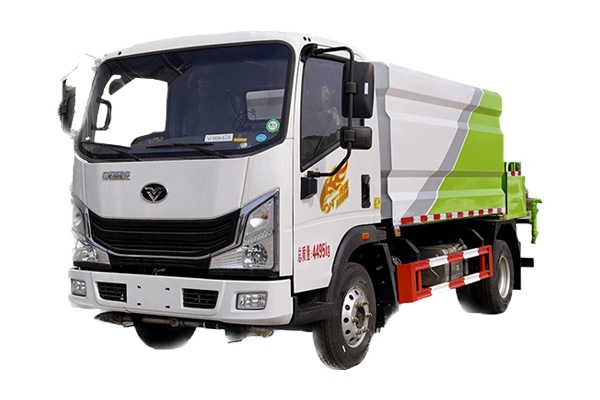

Water Truck

This product has been jointly developed by several conversion factories, compatible with the layouts of various manufacturers, and highly professional. The Weichai high-efficiency engine makes the power more robust and energy-saving more efficient.

Technical Parameters

Engine Model WP2.3Q140E62
Net Power (KW) / Speed (r/min) 103/3200
Maximum Torque (Nm) / Speed (r/min) 320/1400-2400
Transmission WLY6GS42
Clutch (mm) Φ300
Rear Axle Model 1058（3.8T）
Rear Axle Ratio 4.875
Fuel Tank (L) 80
Frame Cross-section (mm) 180
Suspension (Front and Rear Springs) 3/5+3,11/9+7
Tires 7.00R16

Vehicle Configuration

Overall Vehicle Parameters
Engine Model WP2.3Q140E62
Chassis Dimensions (mm) 5900x1980x2180
Wheelbase (mm) 3280
Front Overhang Rear Overhang (mm) 1175/1445
Maximum Total Mass (Kg) 4495,7360
Seated Passenger Capacity 2,3
#
