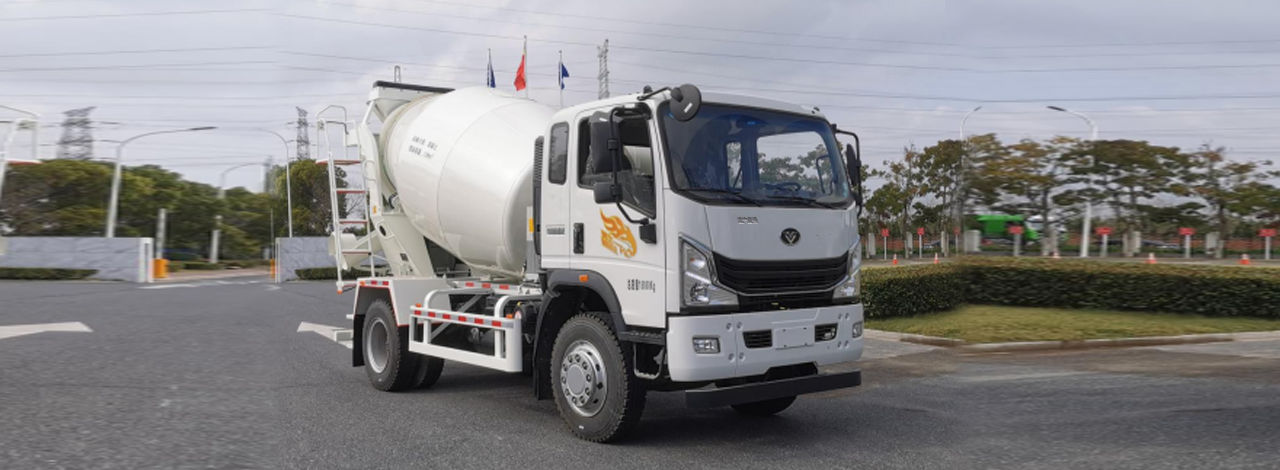

Mixer Truck

Weichai engine + Fast transmission, strong power, fuel-efficient. High-strength frame with a large rear axle, strong load-bearing capacity. Narrow rear axle, strong passability. Suitable for bridge, tunnel, culvert construction work, suitable for rural, narrow urban village roads, aiding new rural construction.

Technical Parameters

Engine Model WP4.1NQ190E61 WP4.6NQ220E61A YCS06245-60
Net Power (KW) / Speed (r/min) 140/2600 162/2300 180/2300
Maximum Torque (Nm) / Speed (r/min) 680/1300-1900 850/1200-1800 835/1200-1700
Transmission 8JS85F 10JS90A-B
Clutch (mm) Φ395 Φ395
Rear Axle Model 153S（10T） 153S（10T）
Rear Axle Ratio 6.833 6.833
Fuel Tank (L) 200 200
Frame Cross-section (mm) 255 255 280
Suspension (Front and Rear Springs) 9/11+8 9/10
Tires 10.00R20 10.00R20

Vehicle Configuration

Overall Vehicle Parameters
Engine Model WP4.1NQ190E61 WP4.6NQ220E61A, YCS06245-60
Chassis Dimensions (mm) 6480x2180x2390 7230x2370x2730
Wheelbase (mm) 3600 3400+1350
Front Overhang Rear Overhang (mm) 1280/1600 1280/1200
Maximum Total Mass (Kg) 18000 24500
Seated Passenger Capacity 2,3 2,3
#
