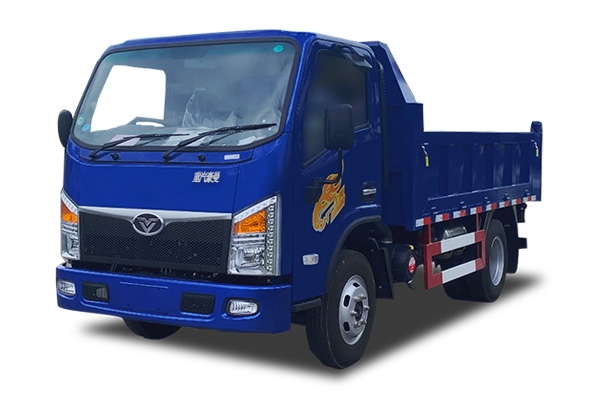

Ox Luck Front and Center: Underground Garage Dump Truck

The Haoman light truck cargo vehicle is powered by Weichai Power WP2. The Haoman underground garage dump truck uses the Weichai Power WP2.3Q140E62 engine, which can be matched with a 5-speed gearbox with a sub-box or an 8-speed transmission depending on different working conditions. It has strong starting power and is less likely to stall frequently; the overall vehicle height is less than 2200mm, with a small turning radius and strong passing ability, suitable for different regions' underground garage transportation and rural material transfer needs.
Technical Parameters
Engine | Model | WP2.3Q140E62 |
Net Power (KW)/Speed (r/min) | 99/3200 | |
Maximum Torque (Nm)/Speed (r/min) | 320/1400-2400 |
Transmission | WLY10H35 transmission, WLY8GS46 transmission |
Clutch (mm) | Φ300 |
Rear Axle Model | 1061(4.2T),1061J(5T) |
Rear Axle Ratio | 4.875 |
Fuel Tank (L) | 120 |
Frame Section (mm) | 196 |
Suspension (Front Spring Rear Spring) | Front and rear multi-leaf spring (8/9+6), front and rear multi-leaf spring (11/11+7) |
Tires | 7.00R16-14PR |
Vehicle Configuration
Overall Vehicle Parameters | |
Engine Model | WP2.3Q140E62 |
Dimensions (mm) | 4495×1900×2100 |
Wheelbase (mm) | 2600/2850 |
Front Overhang Rear Overhang (mm) | 1130/1265,1130/1015 |
Maximum Designated Total Mass (Kg) | 4495 |
Rated Passenger Capacity (people) | 2 |
